Operation overview
Before operating the receiver for the first time, use the installation instructions in

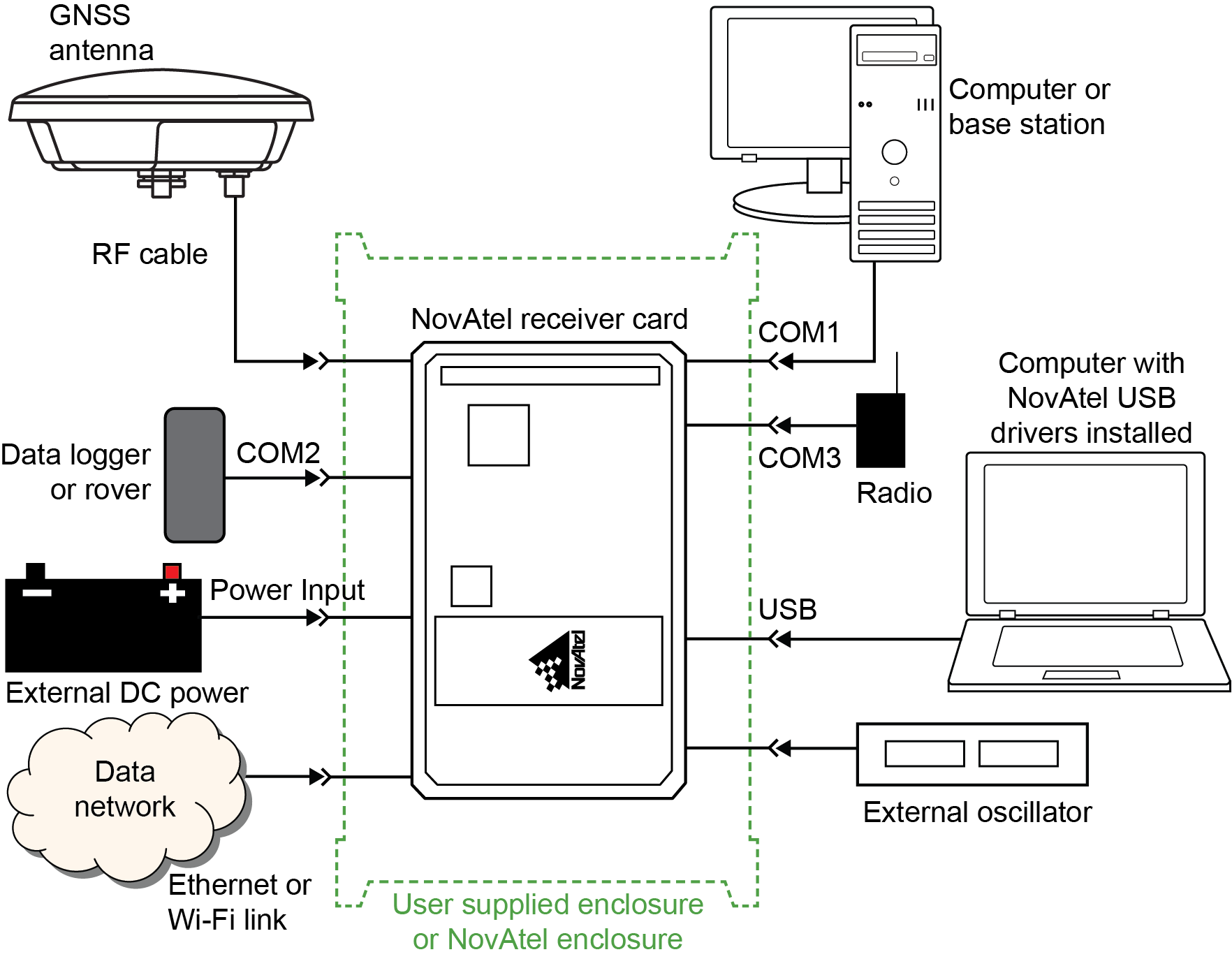

Basic OEM7 receiver connection interfaces (example)
The optional External Oscillator Signal option is only available on the OEM729.
The COM ports on OEM7 receiver cards are LVCMOS, except COM1 on the OEM729, and signal conversion may be required depending on the equipment connected.

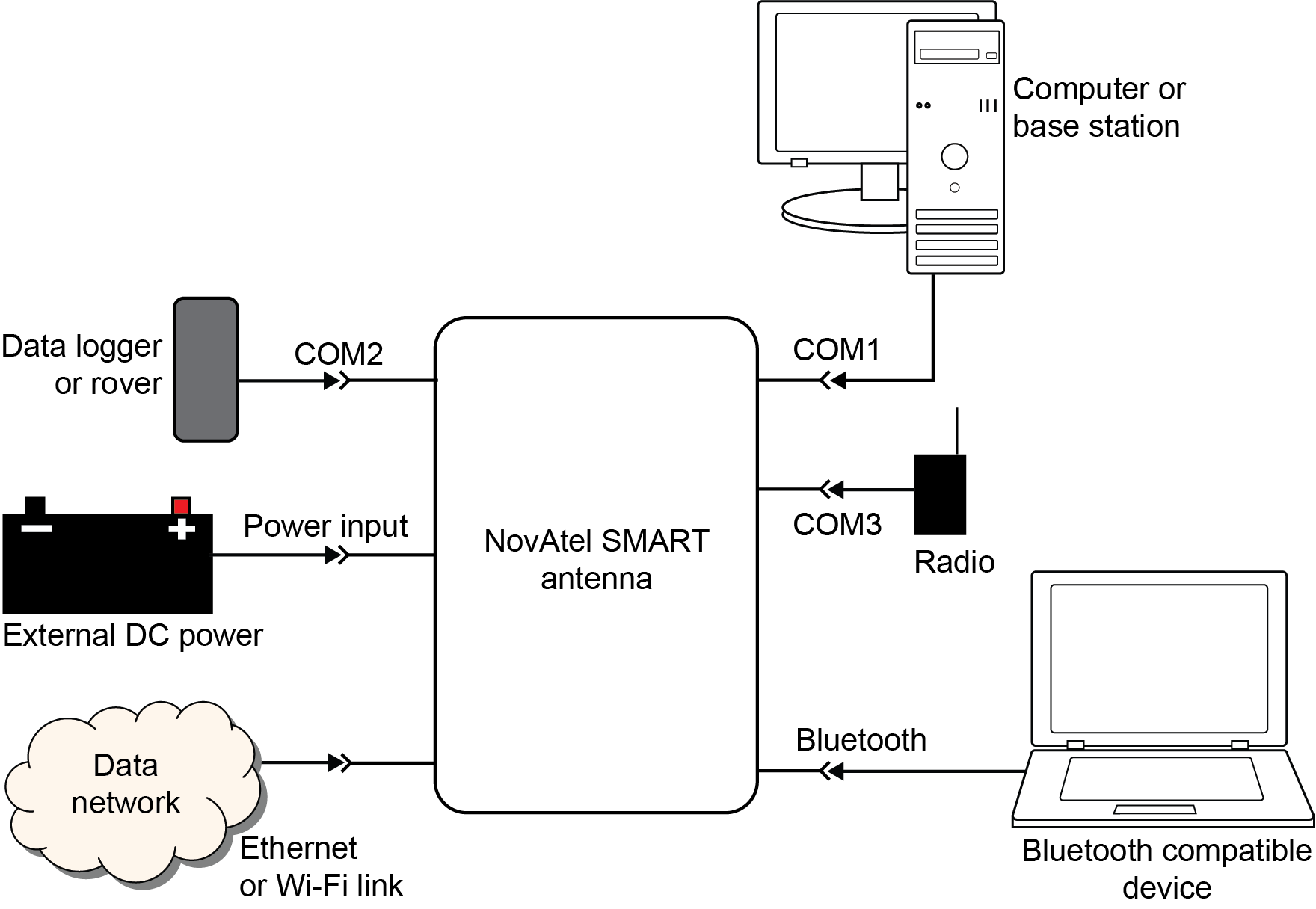

Basic SMART antenna connection interfaces (example)
Ethernet is only available on the SMART7-I and SMART7-SI.
Wi-Fi is only available on the SMART7-I, SMART7-SI and SMART7-W.
Bluetooth is only available on the SMART2-B and SMART2-TB.
The figures above does not show all necessary hardware. Also see Figure: Basic differential setup for a base/rover example.
