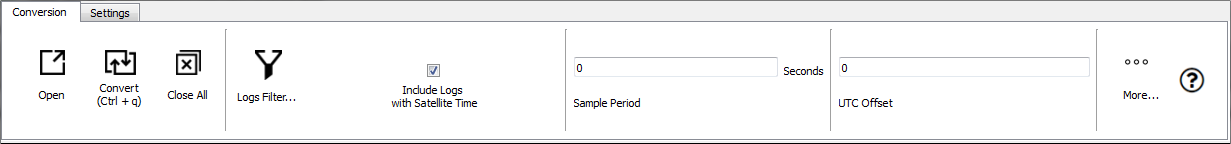

Conversion Toolbar tab

The Conversion toolbar is located at the top of the Main window.

Input file controls

The following buttons are used to manage the log files in the Input side of the Main window.

Open

Use the Open button to open log files to convert.
The opened files appear in the Input side of the Main window.

Convert

After the log files have been added to the Input side of the Main window, use the Convert button (or use the shortcut Ctrl+q) to convert the selected open files.

Close All

Use the Close All button to close all files currently opened in Convert.

Global settings

The following global settings are applicable to all files converted.

Logs Filter

The Logs Filter button opens the Logs Filter dialog box. From this dialog box, the default settings for the logs that are included or excluded from being converted are set. See Logs Filter.

Include Logs with Satellite Time

When the Include Logs with Satellite Time checkbox is selected (has a check mark), logs with a SATTIME time status in the log header (i.e. ALMANAC or EPHEMERIS) will be converted and included in the output file

When the Include Logs with Satellite Time checkbox is cleared, logs with a SATTIME time status in the log header will not be converted.

Sample Period

If required, enter the amount of time between samples that are converted in the Sample Period field. This will reduce the number of logs converted in the output for logs recorded at a higher rate than the sample period. (Sample period)

UTC Offset

The UTC Offset sets the leap second for the UTC offset from GPS. This setting is required for RINEX conversions.

To add a UTC time offset, click in the UTC Offset field and enter the UTC time offset.

More...

The More... button opens the More dialog box. From this dialog box, default settings for the output files can be set. See More... button.
