Plotting and Quality Control (QC)

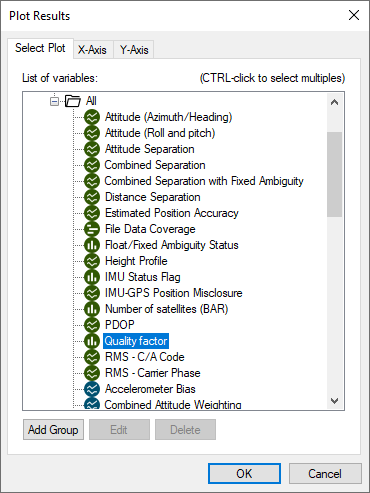

Once processing is complete, QC the project using available plots. Under the Output menu, choose Plot Results to access available plots. Inertial Explorer comes pre-loaded with 3 plot groups:

• Waypoint GNSS QC

• Waypoint GNSS+INS QC (IE/IEX only, meant for those processing TC)

• Waypoint INS QC (IE/IEX only, meant for those processing LC)

The plot groups contain a collection of frequently accessed plots for GNSS-only and GNSS+INS processing. For descriptions of the common plots, see Common Plots.

Consider adding your preferred QC plots to a group using the Add Group button. Your custom plot group will appear under the Grouped Plots list. When plotting a group, all plots within that group are simultaneously plotted. For more information about how to Add Groups, see Add Group.
