Login

You must log in to Manage Web to access the configuration windows and menu options.

To log in to Manage Web:

1. Click the Login menu.

   The Login window appears.

   The Login window automatically appears if you attempt to access a configuration window or menu item before logging in.

2. Enter the receiver login password.

   For receiver cards, the default login password is the receiver PSN.

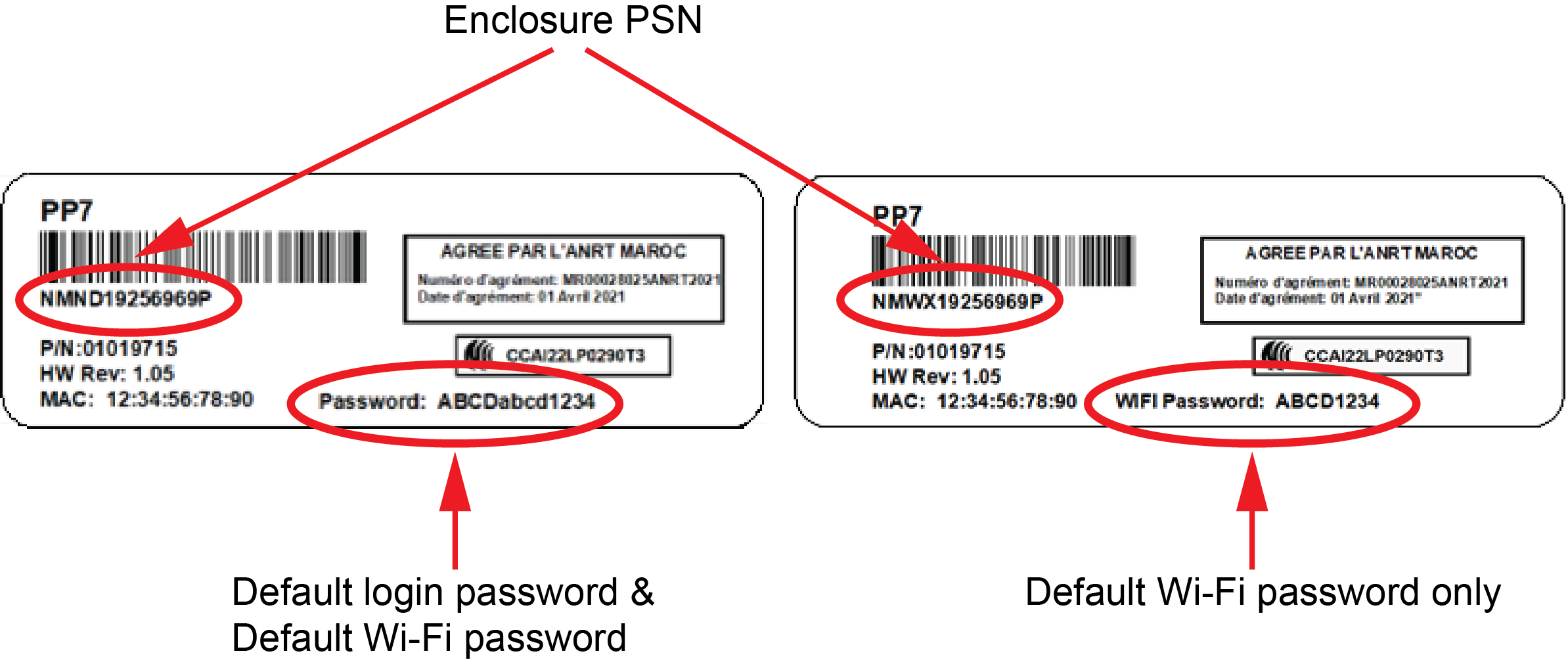

   For a PwrPak7, CPT7, CPT7700 or SMART7 that has the heading Password on the enclosure label, the default login password is the 12 character password shown on the label.
   For a PwrPak7 or SMART7 that has the heading WIFI Password on the enclosure label, the default login password is the enclosure PSN.
   For a CPT7 or CPT7700 with no password listed on the label, the default login password is the enclosure PSN.



   The receiver card PSN can be viewed in the Serial Number field on the GNSS Card tile. See GNSS Card.
   The enclosure PSN can be viewed in the Serial Number field on the Device tile. See Device.

   To change the login password, use the SETADMINPASSWORD command. Information about using this command is available on the OEM7 User Documentation portal (docs.novatel.com/OEM7/Content/Commands/SETADMINPASSWORD.htm).

3. Click the Log in button.
