Details

Use the Details page to view information about the receiver.

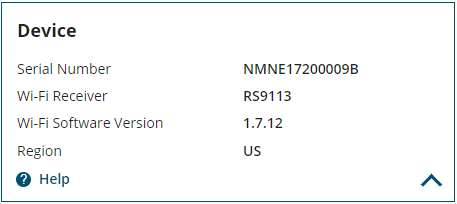

Device

The Device tile provides information about the receiver.

Serial Number

This is the serial number for the receiver enclosure. For example, on a PwrPak7 this is the serial number for the PwrPak7 enclosure, not the serial number of the GNSS card in the enclosure.

Wi-Fi Receiver

This is the model number for the Wi-Fi radio in the receiver.

Wi-Fi Software Version

This is the version of the software running on the Wi-Fi radio in the receiver.

Region

This is the regulatory region the Wi-Fi radio has been configured to comply with.

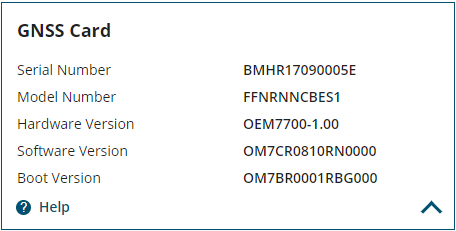

GNSS Card

The GNSS Card tile provides information about the GNSS receiver card (e.g. OEM7700). For enclosure style receivers, such as PwrPak7, the information is about the receiver card in the PwrPak7.

Serial Number

This is the serial number for the receiver card.

Model Number

This is the model number for the receiver card. The model indicates the receiver’s current model functionality.

Hardware Version

This parameter provides information about the receiver card hardware. The hardware version is in the format of P-R, where:

P = hardware platform

R = hardware revision

Example: OEM7720-1.00

Software Version

This is the version of software (firmware) that is running on the receiver card.

Boot Version

This is the version of boot code running on the receiver card.

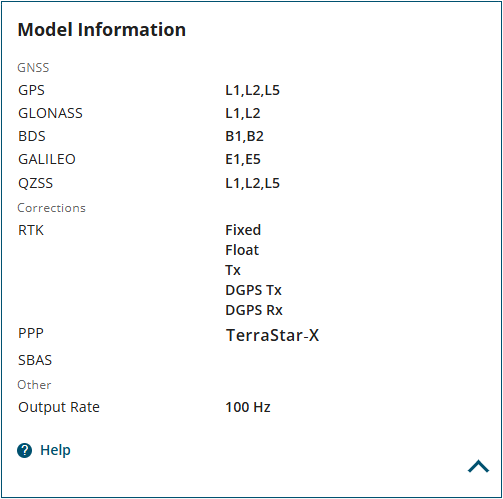

Model Information

The Model Information tile provides information about the functionality enabled on the receiver. The information shown varies depending on the receiver model number and any Auth Codes installed on the receiver.

An Auth Code (authorization code) enables additional functionality on the receiver, such as access to additional constellations or positioning modes. The Authorization Management tile can be used to add new Auth Codes or change the model used by the receiver. Adding a new Auth Code adds new functionality to the receiver. Changing the model changes the functionality currently being used by the receiver to any feature set already purchased for the receiver.

If an L model is loaded on the receiver, the PPP value is Basic Enabled.

If a P model is loaded on the receiver, the PPP value is Basic High Accuracy Enabled.

If an R model is loaded on the receiver, the PPP value is Basic High Accuracy Enabled.

If an N model is loaded on the receiver, the PPP label is not shown.

If a demonstration Auth Code has been applied to the receiver, the expiry date for the Auth Code is shown in the Auth Expiry Date field.
The Auth Expiry Date field is shown only if a demonstration Auth Code has been applied.

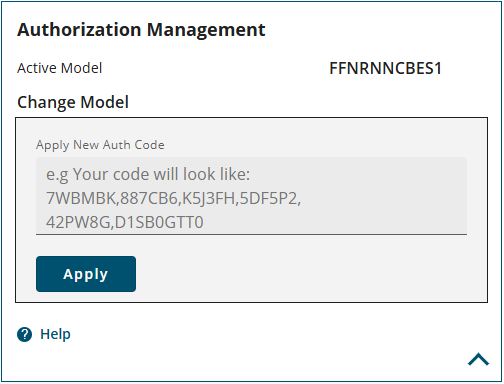

Authorization Management

All of the models available for the receiver are shown on the Authorization Management tile. The model currently being used by the receiver is shown in the Active Model field. The other models available to the receiver are shown below the Apply button.

To add an Auth Code:

  1. Obtain the new Auth Code from NovAtel Sales or your local NovAtel dealer.

  2. Enter the new Auth Code in the Change model box.

  3. Click the Apply button to save the changes to the receiver.

    The receiver will restart when a new Auth Code is applied.

To change the model being used by the receiver to another available model:

  1. Click the Activate button beside the model to enable on the receiver.

    The receiver will restart when the model is changed. After the restart, the Active Model field changes to show the new active model and the Model Information tile changes to show the new functionality enabled on the receiver.

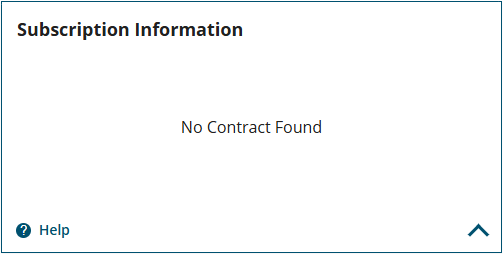

Subscription Information

The Subscription Information tile provides information about the correction services enabled on the receiver.

When there is no active subscription, this tile displays no contract found.

The Subscription Information tile appears only if the receiver has PPP services enabled.

Service Level

This is the type of correction service enabled on the receiver.

End Date

This is the end date for the correction services subscription.
