Status and Configuration Window

When a connection to a receiver is opened, the Status and Configuration window is displayed. From this window, all of the status and configuration windows for the receiver can be accessed.

If there are any current status events for the receiver, notification boxes for the events will temporarily appear on the right side of the window. To view these events later, use the Events menu. See Events.

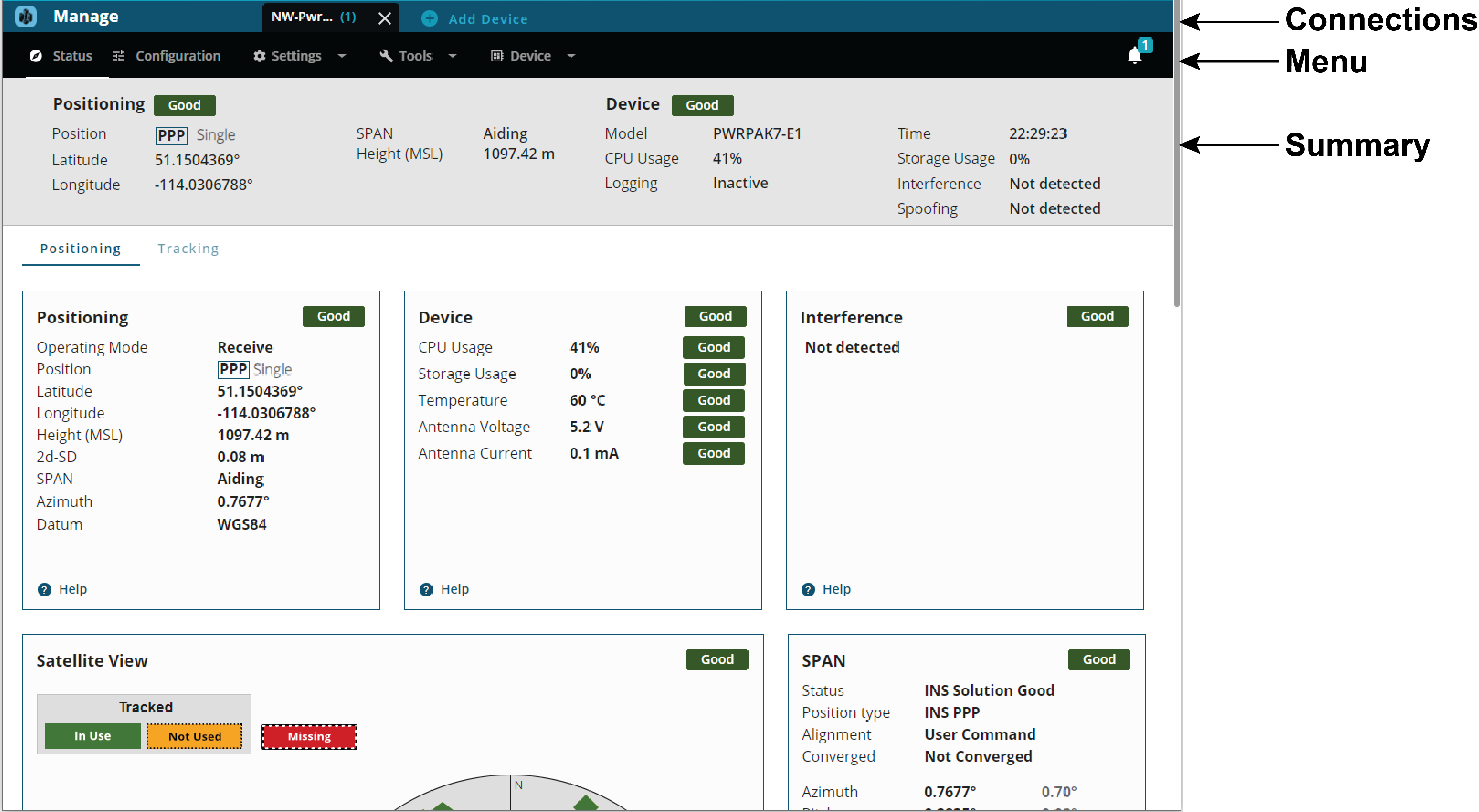

Connections Bar

The Connections bar appears at the top of all Manage windows. This bar shows all the Devices to which the computer currently has a connection.

The Device that is currently being viewed is black. To view a different Device, click the tab on the Connections bar for that Device.

To close a connection, click the X button on the Device tab.

To add a new Device, click the Add Device button on the Connections bar. The New Connection dialog box appears. See Devices Window for information about adding a Device.

Menu Bar

The Menu bar provides access to other tools and settings available in Manage. For information about the Menu, see Menu.

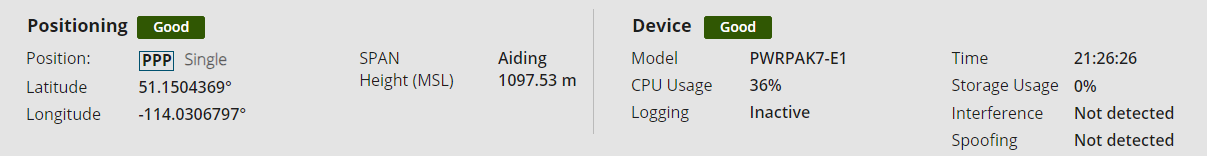

Summary Bar

The Summary bar provides status information about the receiver.

Status Indicator

A colored bar with text indicates the status of the summary information shown.

Color	Text	Description
Green	Good	The receiver is functioning and there are no warnings or errors.
Amber	Warning	The receiver is functioning, but there are one or more issues that may require attention.
Red	Error	An issue is preventing the receiver from functioning. The Error state will remain until the situation is resolved.

If the receiver has a warning or error, click the status indicator to open a tooltip with more information about the warning or error. You can also check the status boxes on the Status tab. An amber or red status indicator appears on the status box where more information about the warning or error can be found. See Status Window for more information.

Position

The Position field shows all of the positioning types configured on the receiver. The positioning type that is currently being used to calculate the position is highlighted in a box.

Latitude

The Latitude field shows the latitude of the calculated position in degrees.

Longitude

The Longitude field shows the longitude of the calculated position in degrees.

SPAN

The SPAN field shows the status of SPAN GNSS+INS technology.

Height

The Height field shows the height above mean sea level of the calculated position in metres.

Model

The Model field shows the receiver type.

CPU Usage

The CPU Usage field shows the amount of receiver computing (CPU) power currently being used.

Logging

The Logging field shows the status of logging to the computer or the receiver's internal memory.

Time

The Time field shows the current UTC time.

Storage Usage

The Storage Usage field shows the amount of receiver internal memory that has been used.

Interference

The Interference field indicates if the receiver has detected interference in the GNSS signal.

Spoofing

The Spoofing field indicates if the receiver has detected a spoofing signal.
