PwrPak7 Connectors

The PwrPak7 has several connectors for connecting the receiver to other components in the GNSS system.

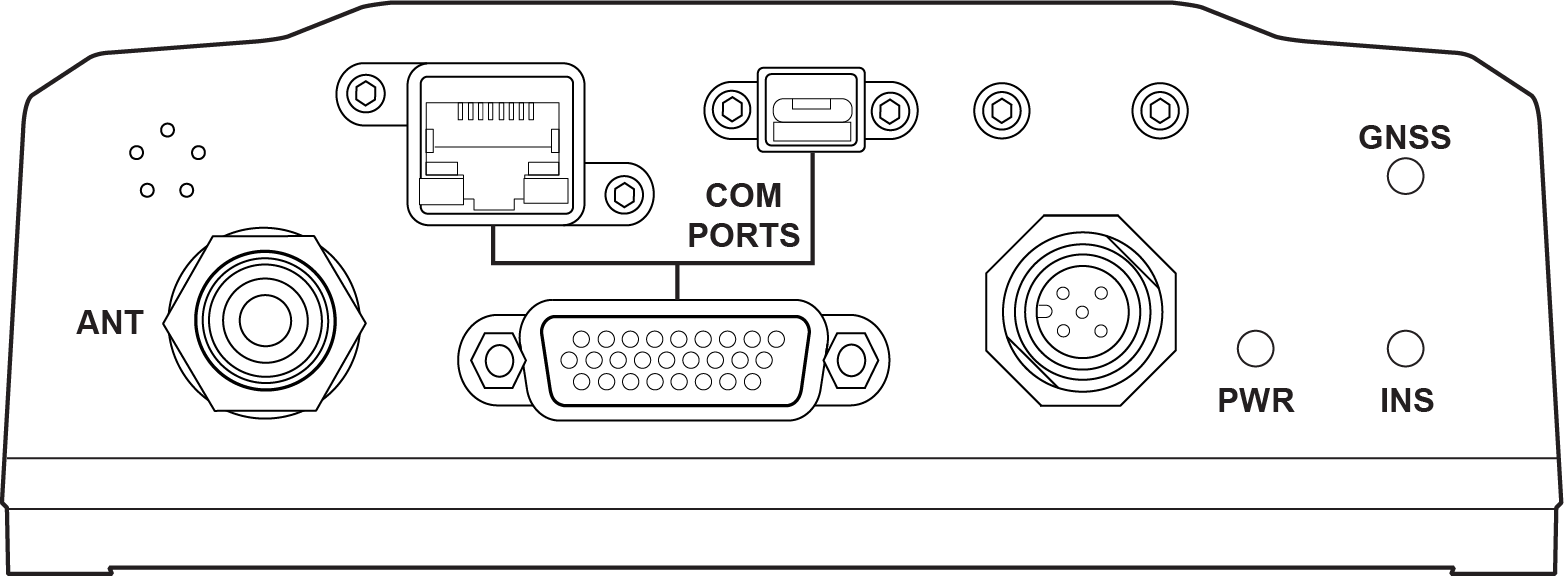

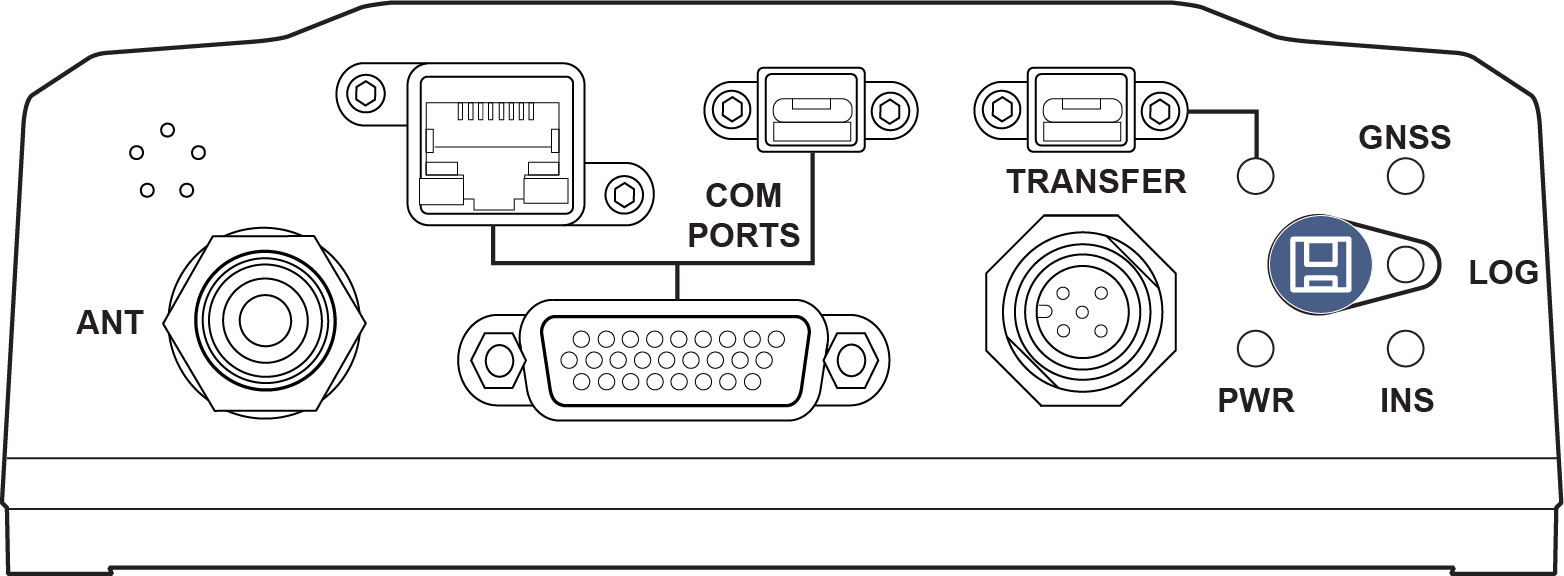

PwrPak7, PwrPak7-E1, PwrPak7-E2 and PwrPak7Q-E2 Connectors

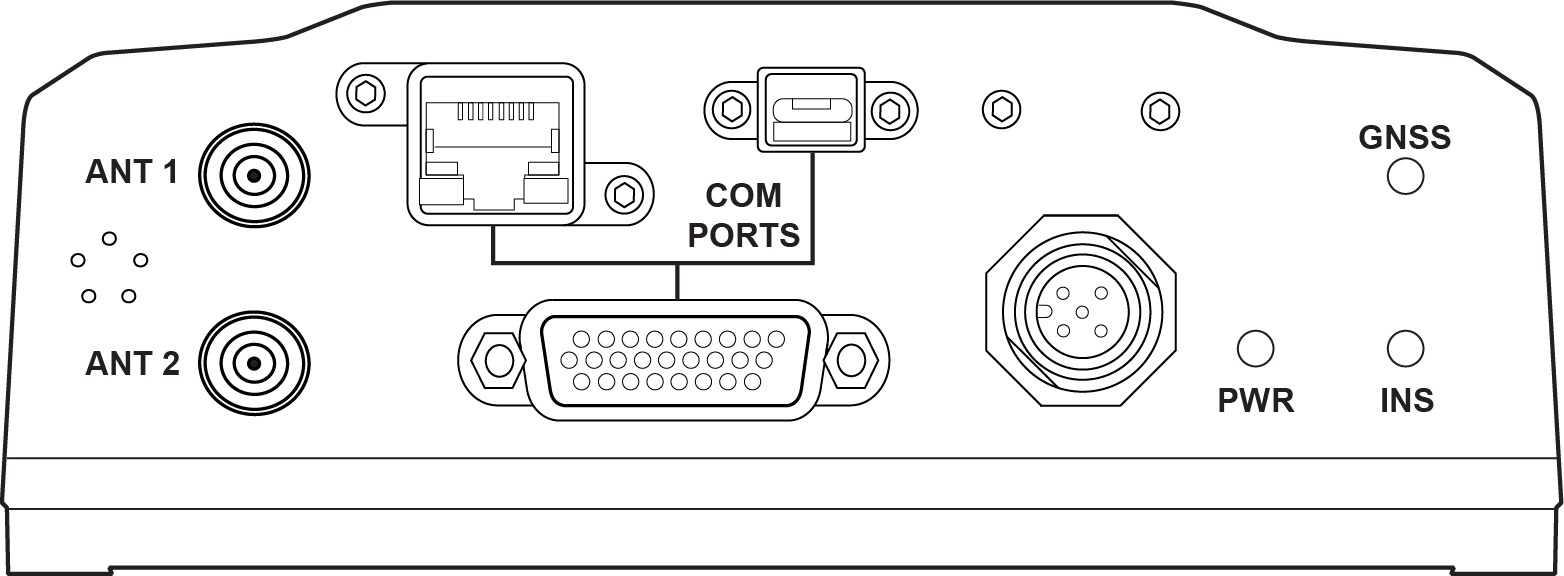

PwrPak7D, PwrPak7D-E1, PwrPak7D-E2 and PwrPak7DQ-E2 Connectors

PwrPak7M Connectors



Do not cover the PwrPak7 pressure vent. The pressure vent must be allowed to breathe to ensure proper PwrPak7 operation.
PwrPak7 Connectors

Connector

Label

Connector Type

Description

ANT

TNC

Connects the receiver to the GNSS antenna

(PwrPak7, PwrPak7-E1 and PwrPak7-E2)

ANT 1

SMA

Connects the receiver to the primary GNSS antenna

(PwrPak7D, PwrPak7D-E1 and PwrPak7D-E2)

ANT 2

SMA

Connects the receiver to the secondary GNSS antenna

(PwrPak7D, PwrPak7D-E1 and PwrPak7D-E2)

COM PORTS

RJ45

Connects the receiver to an Ethernet network
Used to communicate to the receiver using a network connection

USB Micro A/B

A USB 2.0 port used to communicate from a computer to the receiver using a USB cable

DSUB HD26

Provides access to communication signals on the receiver. This includes:

  • 3 Event inputs (LVCMOS)

  • 3 Event outputs (LVCMOS)

  • 1 Pulse Per Second output (LVCMOS)

  • 1 CAN bus

  • 3 serial ports

    • COM1 RS-422/RS-232 user selectable

    • COM2 RS-422/RS-232 user selectable

    • COM3 RS-232

  • Wheel Sensor RS-422 Quadrature Input

TRANSFER

USB Micro A/B

USB 2.0 port used to transfer files from the onboard memory to a USB stick or computer

(PwrPak7Q variants do not have the TRANSFER port.)

PWR

SAL M12 5 pin

Connects the receiver to the power supply

Refer to the PwrPak7 Connectors for connector details.
