HG1900 IMU to UIC Cable Assembly

The NovAtel part number for the HG1900 IMU to UIC interface cable is 01019762 (Figure: OEM-IMU-HG1900 IMU to UIC Cable Assembly). This cable provides power to the IMU and enables communication between the MIC and the IMU.

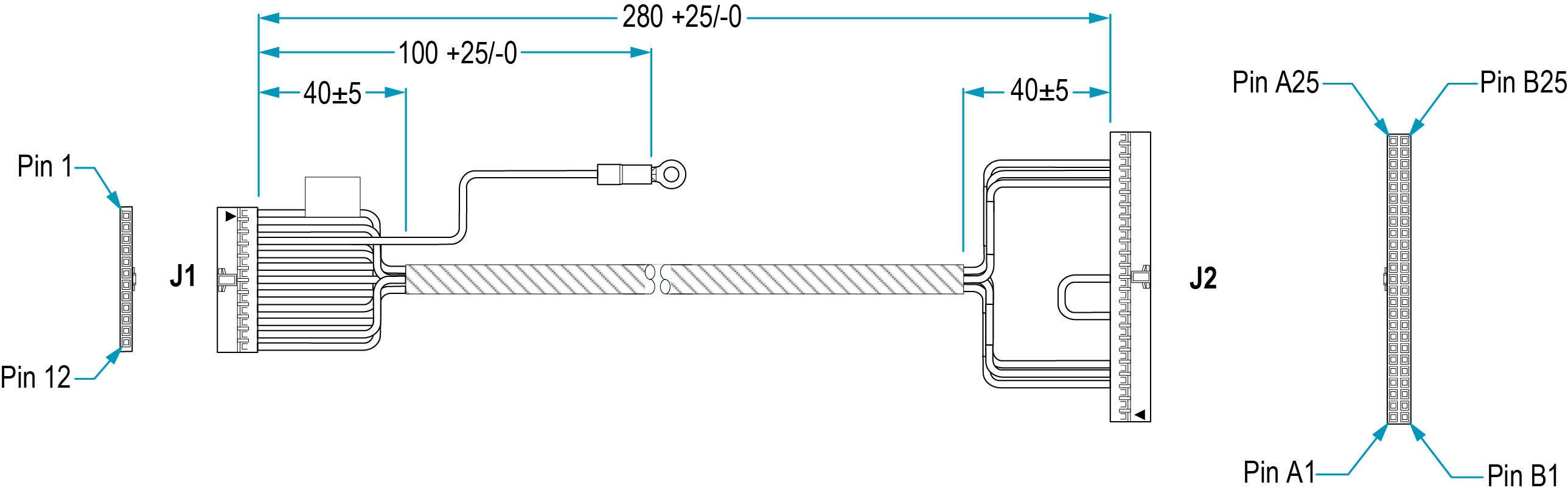

OEM-IMU-HG1900 IMU to UIC Cable Assembly

OEM-IMU-HG1900 IMU to UIC Cable Pinout

J1 Pins (to HG1900)



J2 Pins (to UIC)

1



A3
B5

2



A4

3



Lug Ring

4



A5

5



A23

6



B21

7



B22

8



A22

9



B19

10



B20

11



A16

12



A17





A11 to A12
