HG1700 IMU Mechanical Drawings

The dimensions in the following diagrams are in millimetres.

HG1700 Top/Bottom Dimensions

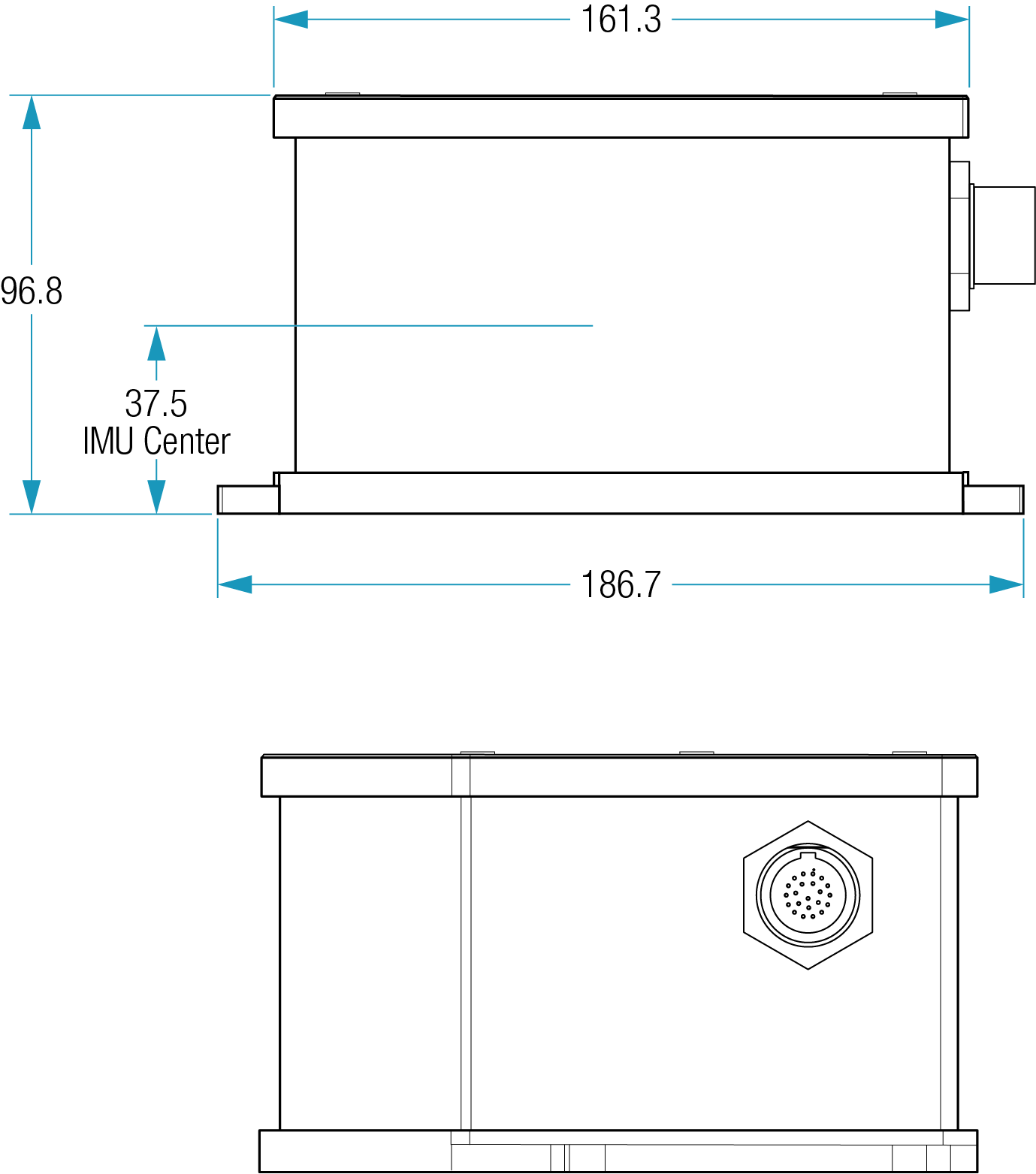

HG1700 Enclosure Side Dimensions

The center of Navigation, shown on the HG1700 label, for the internal IMU is the same as the enclosure center. The enclosure center measurements are labeled as IMU Enclosure Center in these figures.
