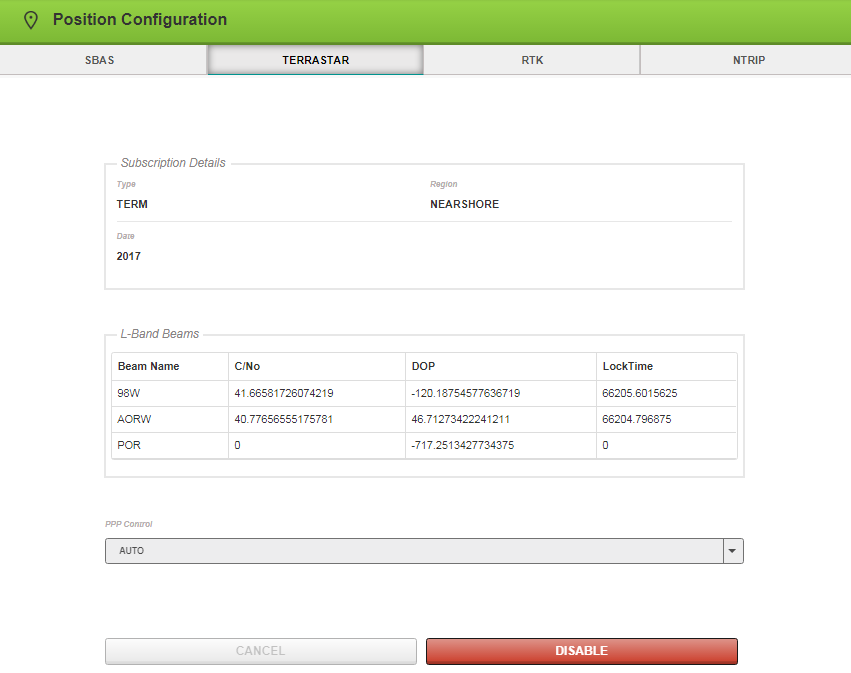

Position Configuration – TerraStar

Use the Position Configuration – TerraStar Window to:

• Review current TerraStar subscription details

• Review L-Band Beams selected

• Select PPP Control

.

Once settings selected, press the APPLY button to save the changes or the CANCEL button to return to previous settings.

Press the DISABLE button to turn Configured Position Mode off.

Refer to the ASSIGNLBANDBEAM command for PPP Control details.
