Position Configuration – SBAS

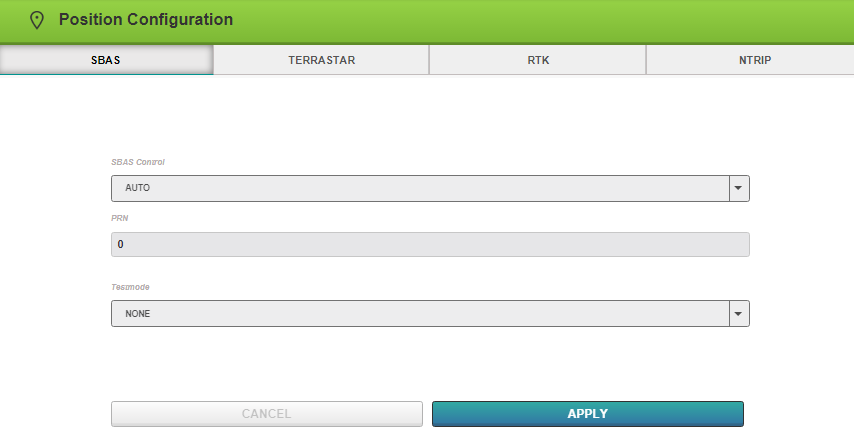

Use the Position Configuration – SBAS Window to define how the receiver tracks and uses correction data from Satellite Based Augmentation Systems (SBAS).

Use the drop menus to define the SBAS Control system type and the Testmode to define how the receiver interprets messages.

Refer to the Table: System Types in the SBASCONTROL command in the OEM7 Receiver User Documentation Portal (docs.novatel.com/OEM7).

.

Once settings selected, press the APPLY button to save the changes or the CANCEL button to return to previous settings.

.

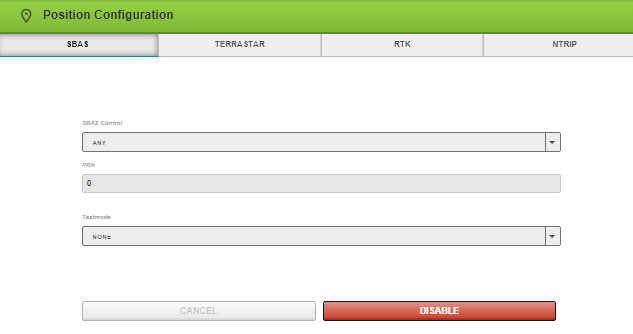

Press the DISABLE button to turn Configured Position Mode off.
