Constellation Tab

The Constellation Tab is used to display each satellite the receiver is tracking in graphical format and turn on and off the constellations that display.

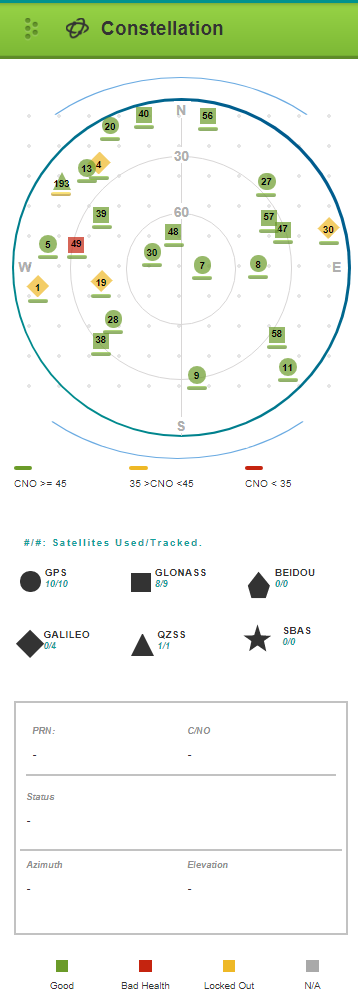

Constellation Status Window

Concentric circles from 0° to 90° represent elevations from the horizon to directly overhead. The azimuth is mapped on a compass relative to true North.

The PRN of the satellite tracked appears on the Satellite icon. Click on an icon to display the Pseudo Random Number (PRN), Azimuth (AZ), Elevation (ELEV), Status and Signal to Noise Ratio (CNO). In addition, the signal strength appears as a color-coded bar below the satellite icon. Refer to icon and color legends within the Constellation Status window for definitions.

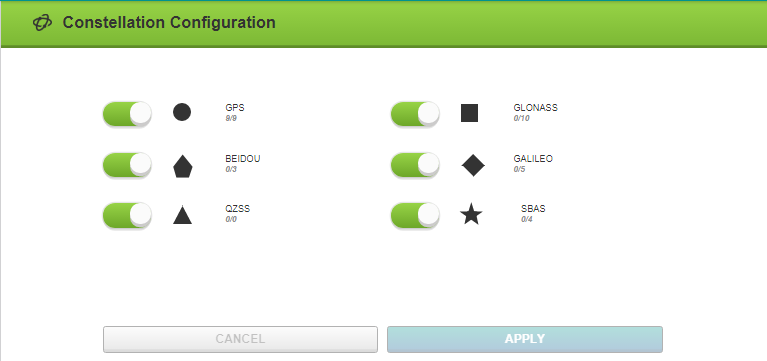

Constellation Configuration Window

Use the Constellation Configuration Window to select the signals to track by clicking right or left on the buttons. indicates a signal is off and not tracking; green indicates the signal is being tracked.

Once settings selected, press the APPLY button to save the changes or CANCEL return to previous settings.
