Update

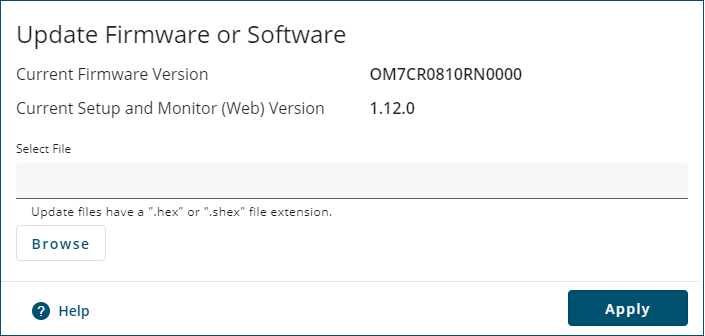

Use the Update window to view the software currently loaded on the receiver and to load new software onto the receiver.

The Current Firmware Version field shows the version of the software loaded on the receiver. The Current Manage Web Version field shows the version of the Manage Web software loaded on the receiver.

The new software must be copied onto the computer used to run NovAtel Application Suite before starting this procedure.

To load new software on the receiver:

1. Click the Browse button.

   The Open dialog box appears.

2. Navigate to the folder in which the new software to load is stored and select the software file.

   The selected file appears in the File name field.

3. Click the Open button.

   The Update window appears with the name of the selected file in the Select File field.

4. Click the Apply button

After the new software is loaded, the receiver will restart.

The Firmware Update feature is not available on the MarinePak7.
