GNSS Configuration

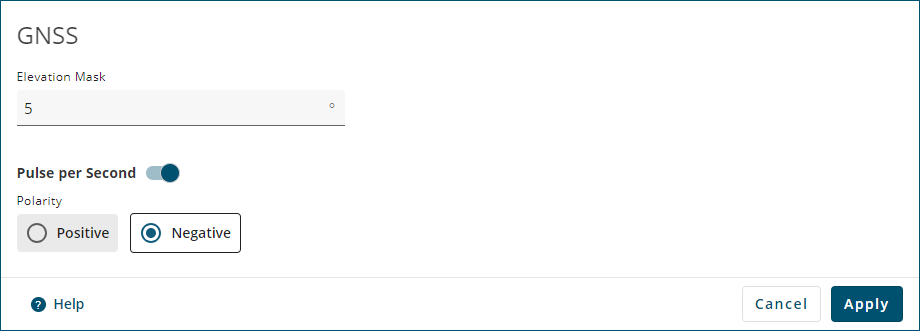

Use the GNSS configuration window to configure elevation mask and Pulse Per Second (PPS) output.

Elevation Mask

The Elevation Mask is the elevation cut-off angle for tracked satellites in degrees. The receiver does not start searching for a satellite until it rises above the cut-off angle (when the satellite position is known). Tracked satellites that fall below the cut-off angle are no longer tracked

Enter a value between 1 and 90 degrees, where 1 degree is just above the horizon and 90 degrees is directly overhead.

Pulse per Second

To enable the PPS output signal, set the Pulse per Second switch to enable ().

To disable the PPS output signal, set the Pulse per Second switch to disable ().

Polarity

Select Positive to use a positive polarity on the pulse generated on the PPS output

Select Negative to use a negative polarity on the pulse generated on the PPS output
