Usage

EDIE provides different classes for interfacing with messages, each at a different level of the decoder stack. The main use-case of EDIE is to transform the data from one format into another. Documentation on the three NovAtel formats can be found on the OEM7 Receiver User Documentation portal at: ASCII, Abbreviated ASCII, and Binary. Flattened binary is a format unique to EDIE that standardizes the Binary format to have consistent-length arrays. So variable-length arrays are converted into fixed-size arrays. Flattened binary covers all formats (ASCII, abbreviated ASCII, and Binary).

User	Task	Purpose	Format	Example
Person	Human-readable	To make the data understandable to people	ASCII/Abbreviated ASCII	Finding the timestamp of a BESTPOS message
Programmer	Program-accessible	To make the data accessible from a programming language	Flattened Binary	Filtering a log file for BESTPOS messages
Computer	Machine-readable	To have efficient transmission and storage of the data	Binary	Efficient long-term storage of logs

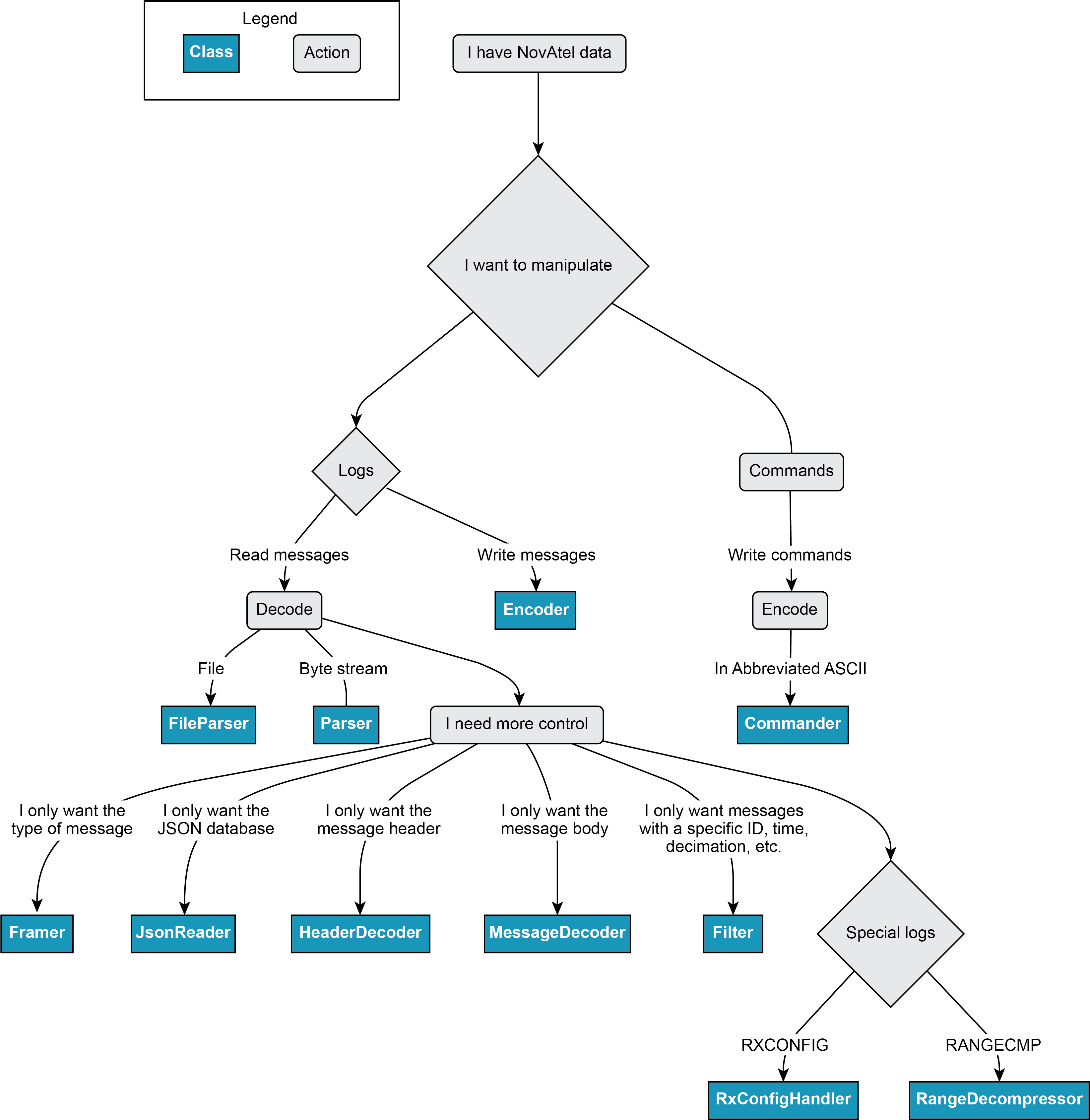

Flowchart

Use the following flowchart to determine which EDIE class you need.

Notes

• The MessageDecoder and Encoder class output and input the EDIE intermediate format and not ASCII/Binary.

• The RXCONFIG and RANGECMP* messages are handled in different classes because of their unique traits.

• The FileParser and Parser classes automatically filter and decode RXCONFIG and RANGECMP messages. So the RxConfigHandler and RangeDecompressor classes should only be used when bypassing the Parser class.

• The Parser class can handle any byte stream such as a file stream, serial, Ethernet, or USB.
