Position tile

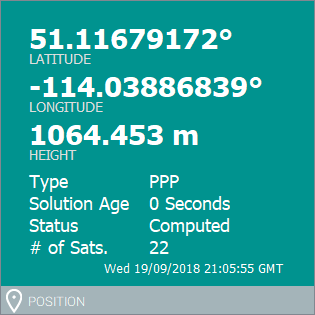

The Position tile displays position and time information.

Click to open the Position full size tile.

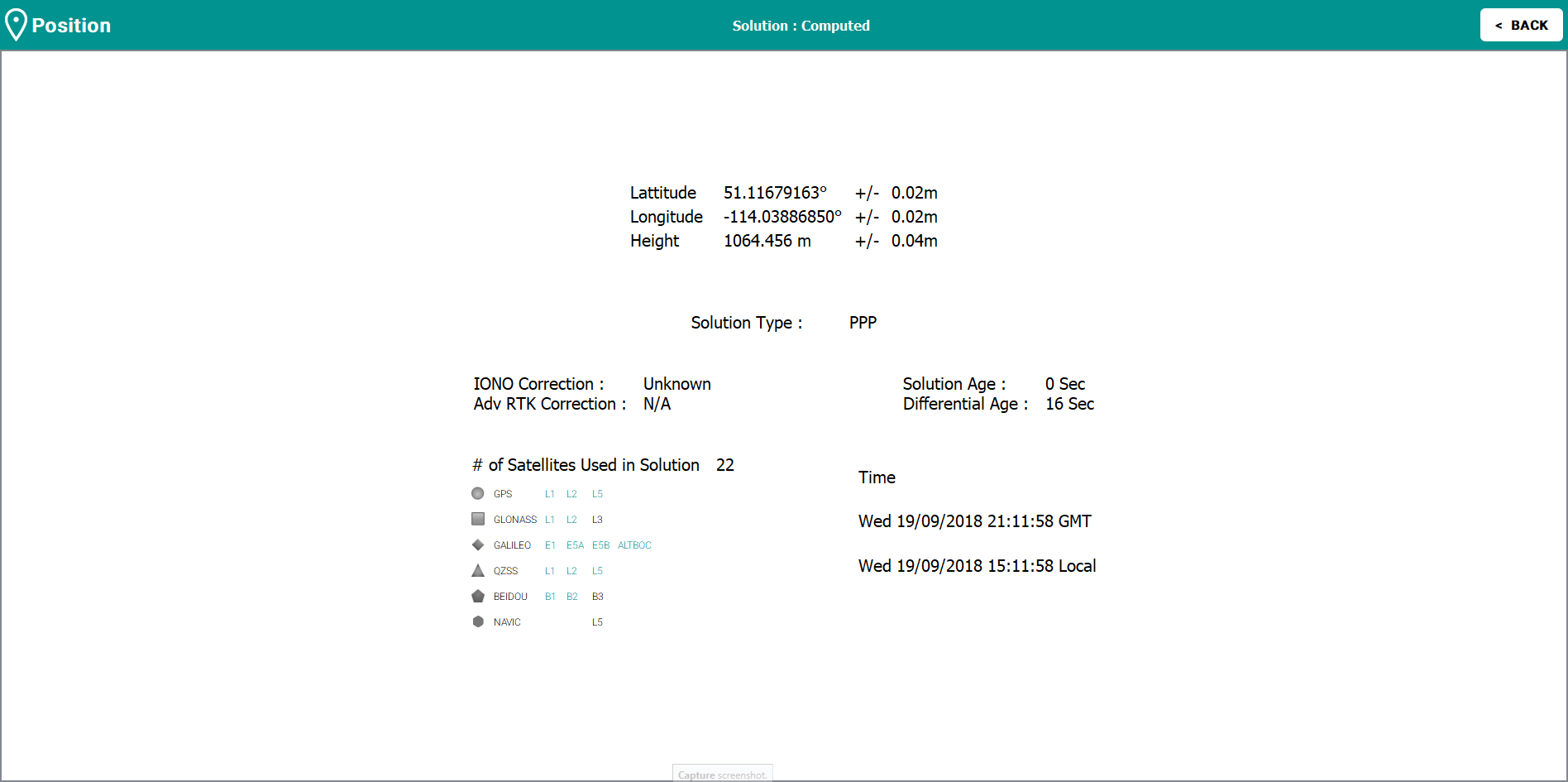

Double click the Position tile or click to open the Position window.

Position information

• Latitude, longitude and height and their estimated accuracy to one standard deviation (+/-)

• Position/Solution type and status

• Ionospheric Correction

• RTK Correction status

• Solution Age - age of computed solution

• Differential Age - age of differential corrections

• # of Satellites used in solution - total number of satellites used in computation of solution

For details about the information provided on this window, refer to the BESTPOS log in the documentation.
For OEM7 receivers, refer to the NovAtel OEM7 Documentation Portal (docs.novatel.com/OEM7).
For OEM6 receivers, download the OEM6 Family Firmware Reference Manual (OM-20000129) from the NovAtel website at novatel.com/support/support-materials/manual.
