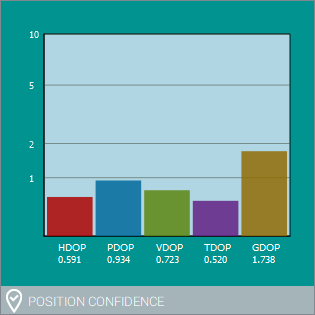

Position Confidence tile

The Position Confidence tile displays all DOP (Dilution of Precision) values in graphical and text format.

• HDOP: Horizontal DOP

• PDOP: Position DOP

• VDOP: Vertical DOP

• TDOP: Time DOP

• GDOP: Geometric DOP

The color of the Position Confidence tile indicates the status of PDOP.

• Green: if PDOP <= 3

• Yellow: if PDOP > 3 to <= 5

• Red: if PDOP > 5

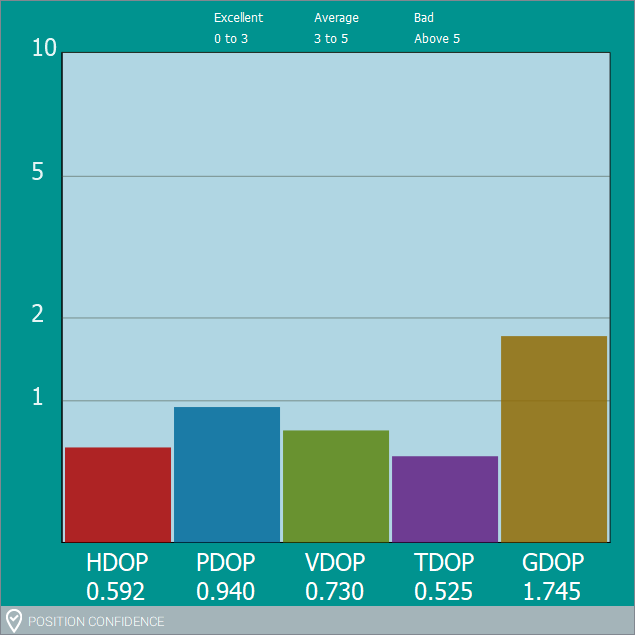

Click to open the Position Confidence full tile.

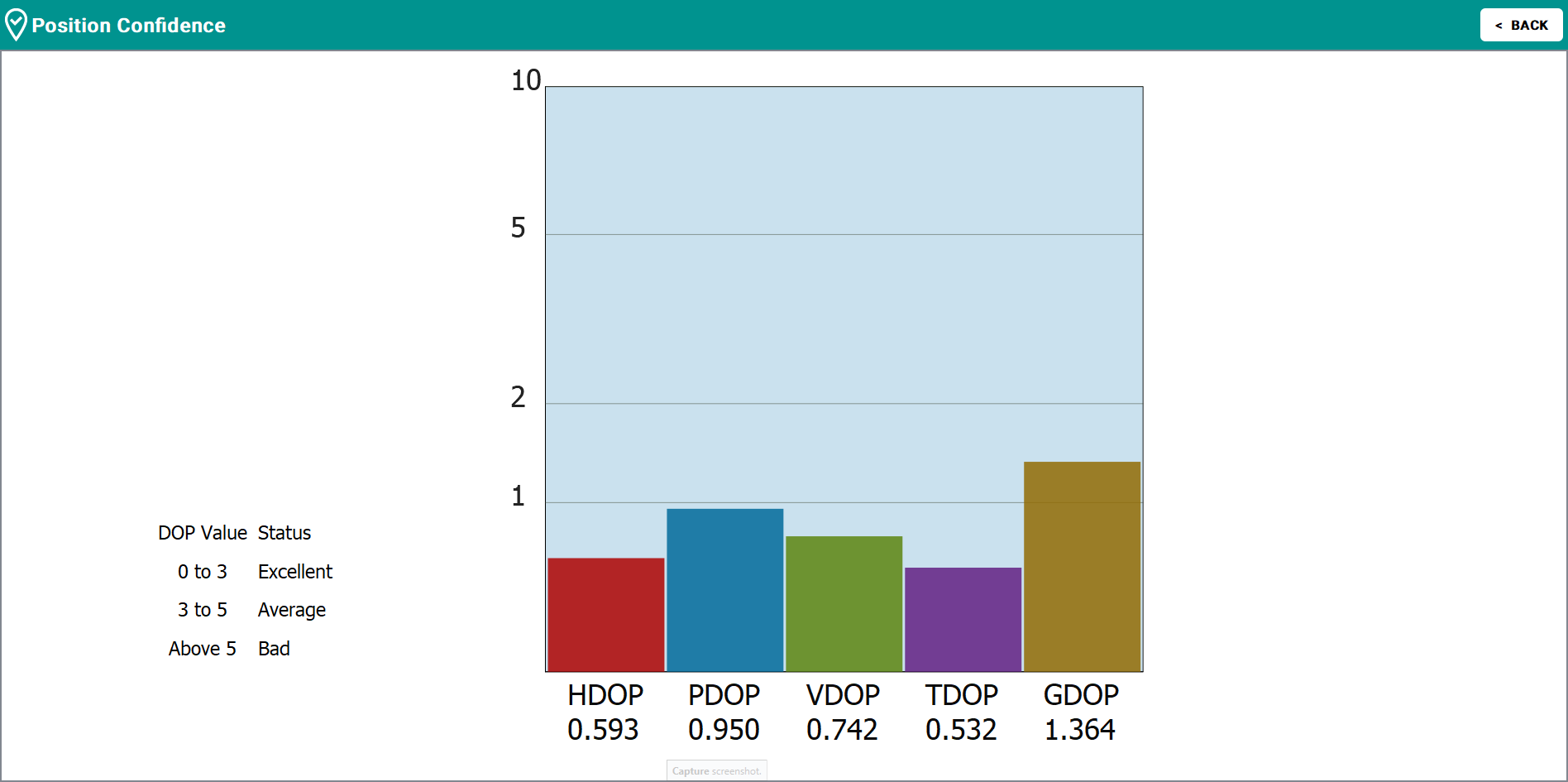

Double click the Position Confidence tile or click to open the Position Confidence window.

For details about the information provided on this window, refer to the PSRDOP log in the documentation.
For OEM7 receivers, refer to the NovAtel OEM7 Documentation Portal (docs.novatel.com/OEM7).
For OEM6 receivers, download the OEM6 Family Firmware Reference Manual (OM-20000129) from the NovAtel website at novatel.com/support/support-materials/manual.
