IMU-µIMU-IC mechanical drawings

In the following diagrams, the dimensions are in millimetres.

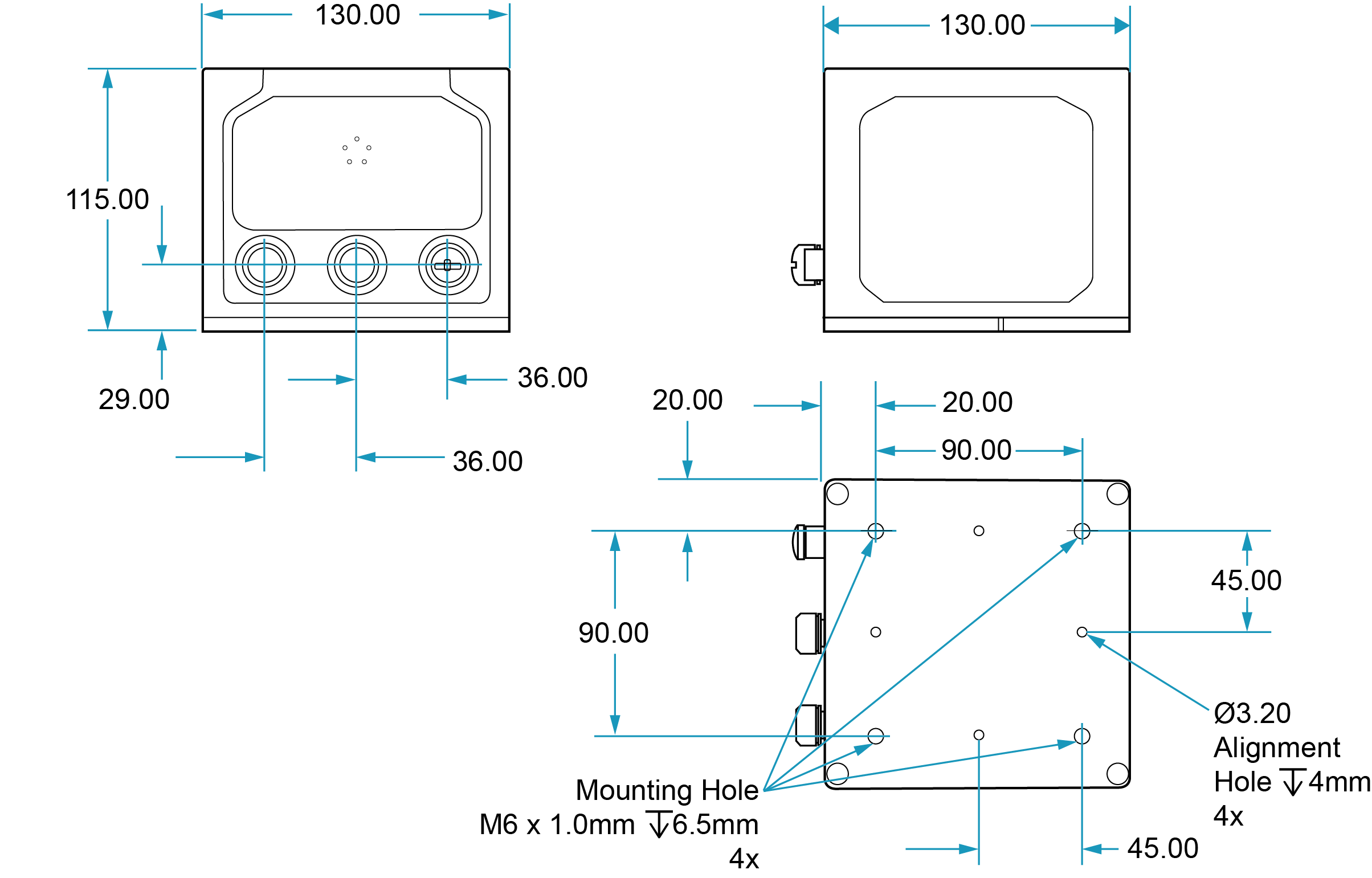

IMU-µIMU-IC dimensions

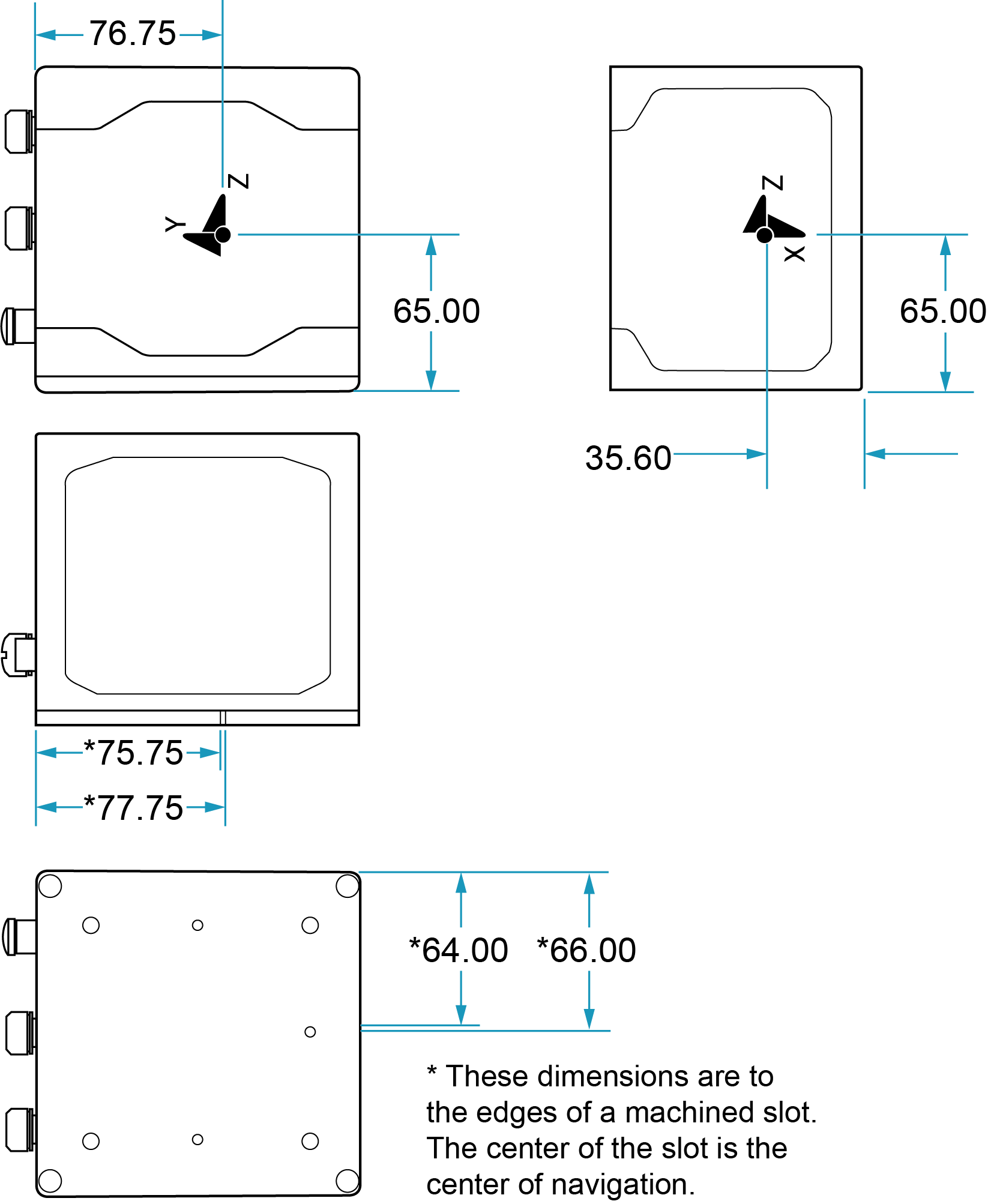

IMU-µIMU-IC center of navigation
