OEM7600 Receiver Overview

The OEM7600 is an extremely compact OEM7 receiver with the following features:

  • Multi-frequency/Multi-constellation:
    GPS L1 C/A, L1C, L2C, L2P, L5; GLONASS L1 C/A, L2 C/A, L2P, L3; BeiDou B1I, B1C, B2I, B2a, B2b; Galileo E1, E5 AltBOC, E5a, E5b; NavIC L5; QZSS L1 C/A, L1C, L1S, L2C, L5; SBAS L1, L5

  • LVCMOS UART communications ports

  • USB communications ports

  • Ethernet communications port

  • High density connector for increased connectivity options

  • PPP, RTK, SBAS and DGPS positioning solutions

  • GLIDE and ALIGN positioning options

  • SPAN GNSS+INS capable

  • Enhanced interference mitigation

  • Integrated RF shield

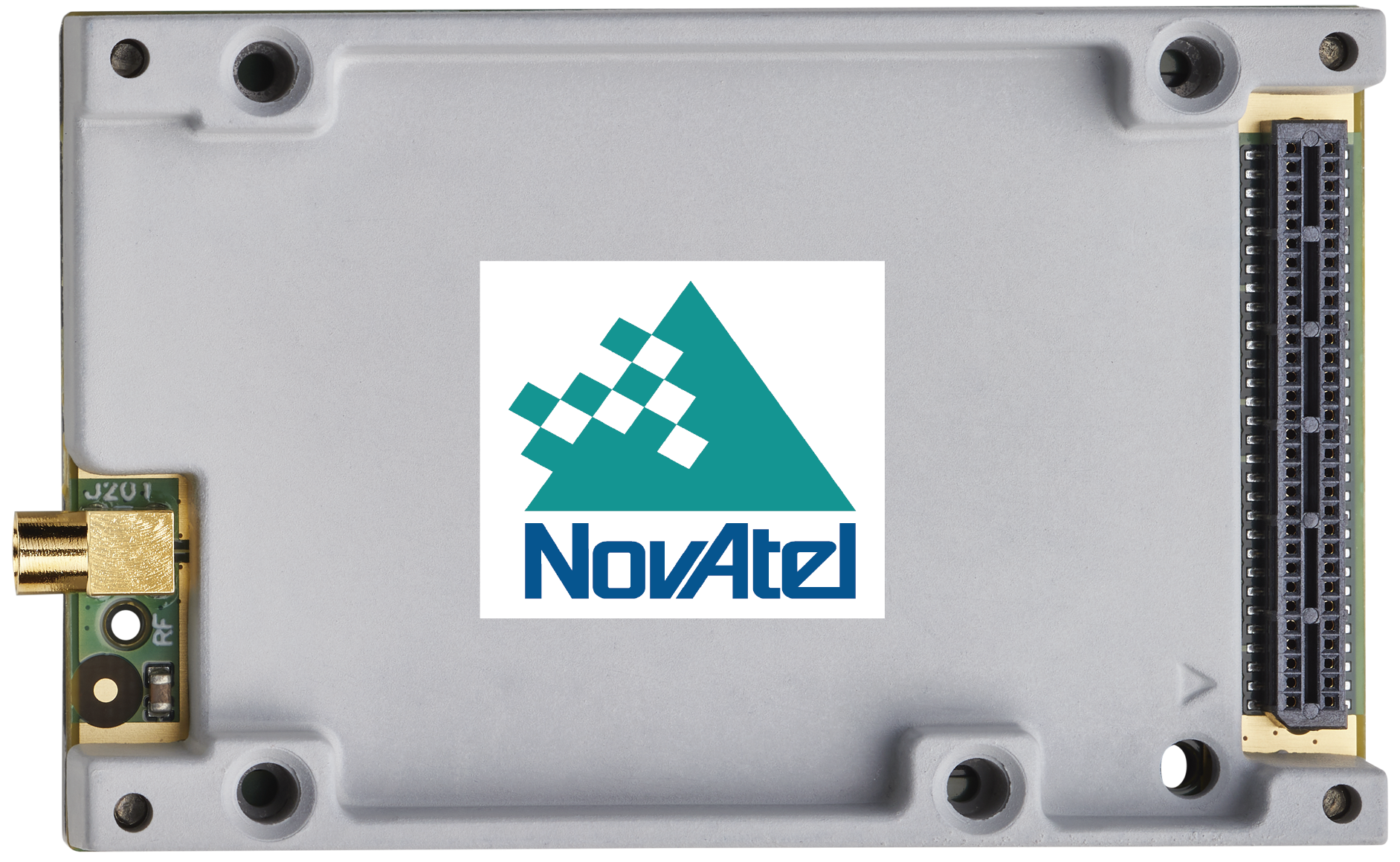

OEM7600 Receiver Board

OEM7600 technical specifications are provided in OEM7600 Technical Specifications.
